THREE PIECES OF TURKU




Team: Giedrius Mamavičius, Gabrielė Ubarevičiūtė

Collaborators: Santtu Hyvärinen
Consultants: Traffic - SITOWISE (Esa Hartman, Matias Harme)
Site area: 35 ha
Built area: 120 000 m2

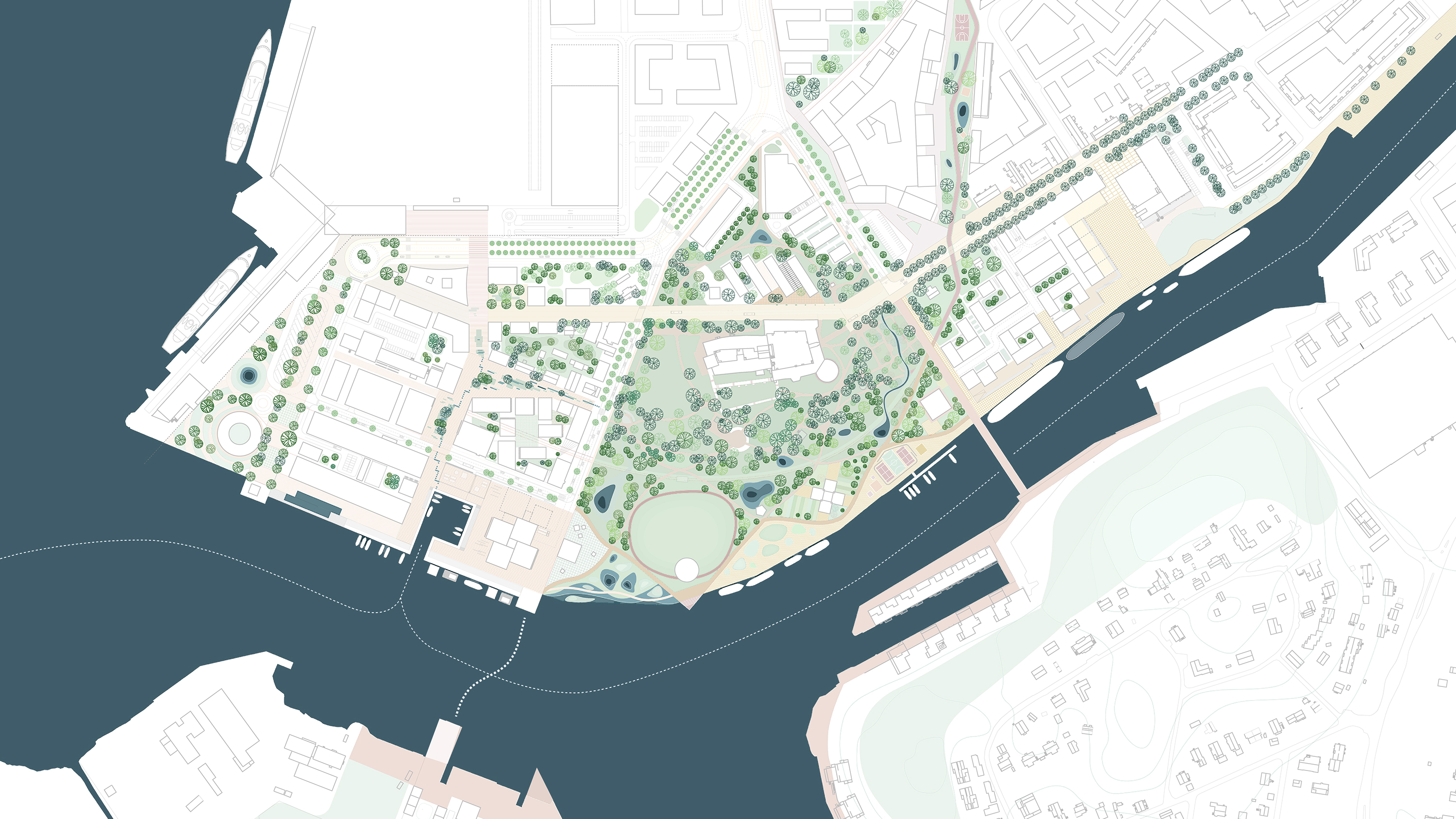

Type: Masterplan
Program: Public Space, Museum, Residential, Office, Commercial
Location: Turku, Finland
Status: Competition, 1st Prize
Year: 2020




Full Text

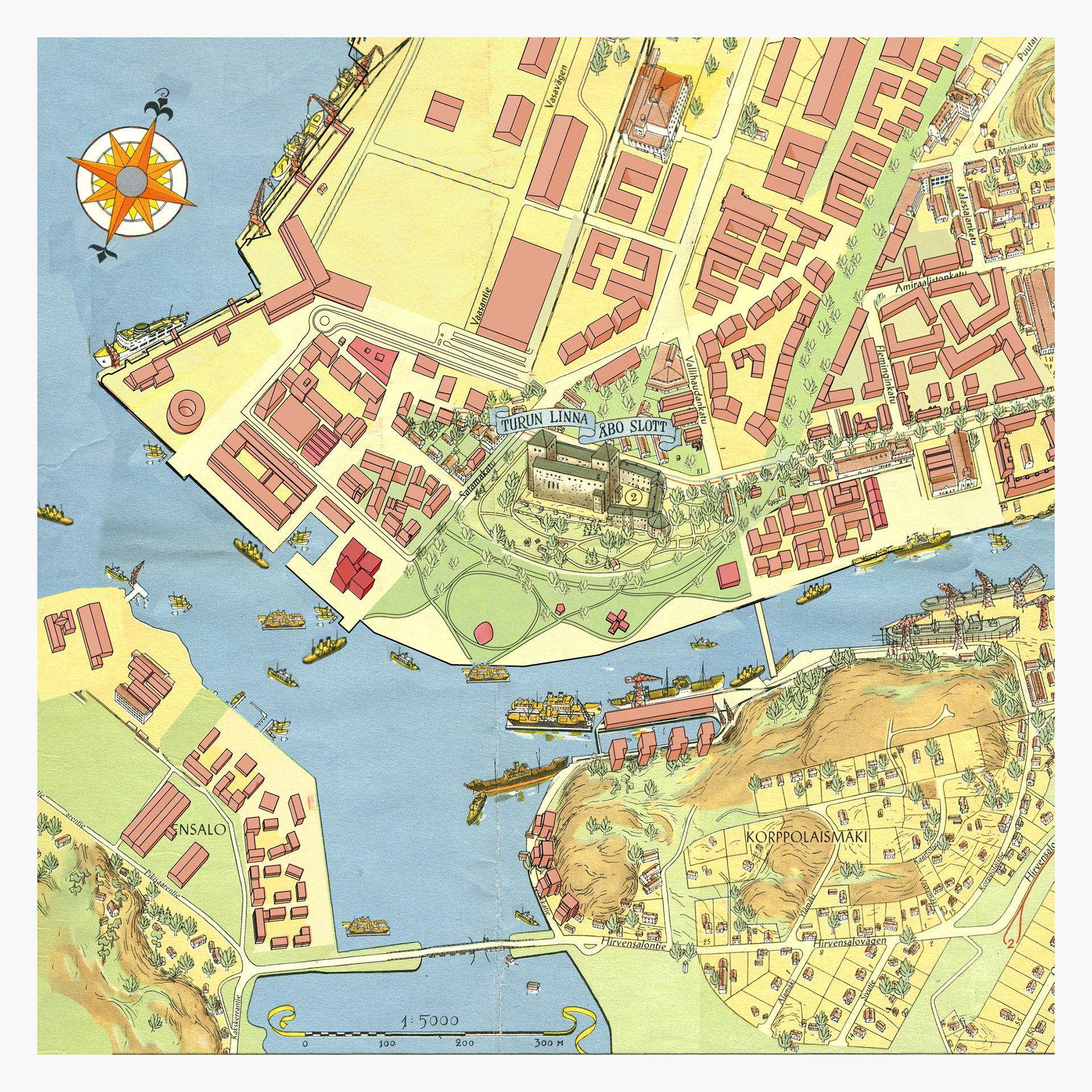

Linnanniemi - a gateway of
Turku, squeezed between the
city and one of the most prolific
archipelago‘s in the world marks
the point where both conditions

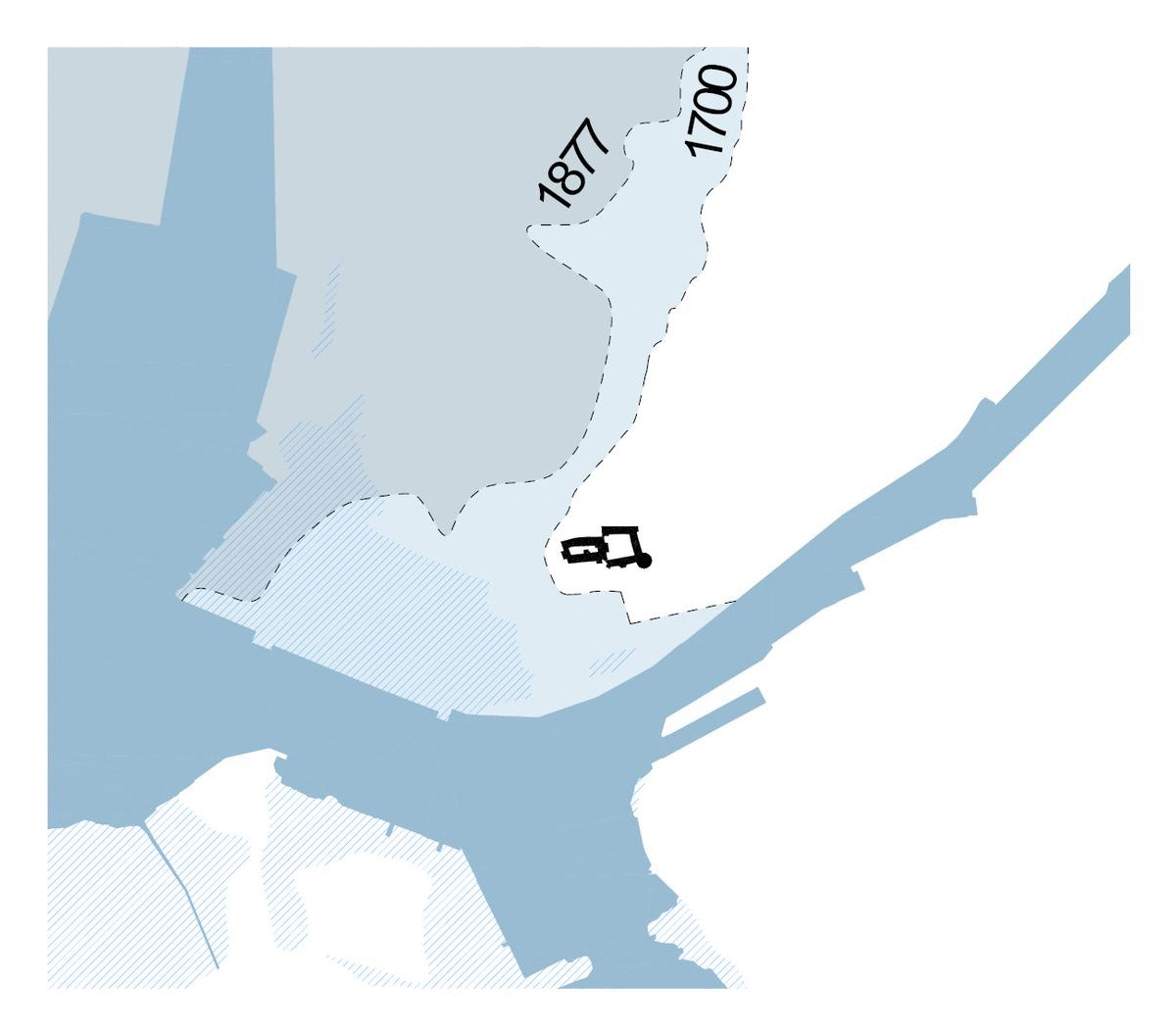

should meet. Situated mostly
on the low-lying land that was
once the sea, the area of natural
setting to the medieval castle
turned into a grey territory for
industry and transportation.
This transformation left the area
not only as just a transfer point
but also vulnerable to the future
posed threats of climate change.

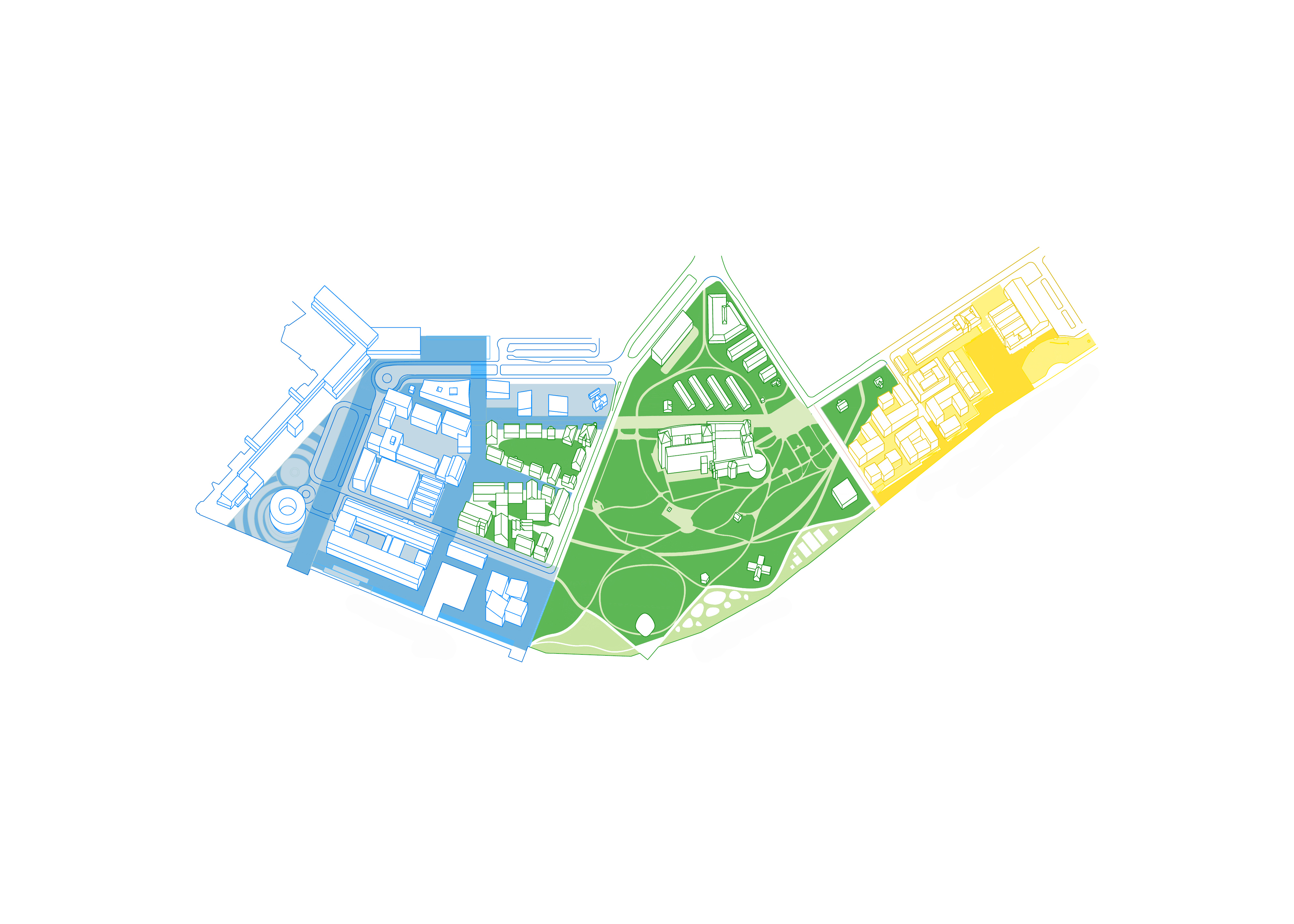

Three Pieces



The area of the masterplan
comprises three strong themes
that represent the unique identity
of Turku: historical background
with the medieval Turku castle,
the Aura riverfront of vibrant,
growing city and a busy harbour
welcoming many visitors
throughout the year. These three
themes shape the three distinct
characteristic pieces with the
Castle Park at its heart.












By surrounding existing castle
park with a necklace of green
public spaces, the park is
stretched all the way to the
waterfront becoming the
backbone of nature, serving as a
healthy recreational space to
densely populated surrounding
areas, a natural barrier from the
intense industrial port to breath
clean air into the city and a
softscape preventing the area
from flooding.

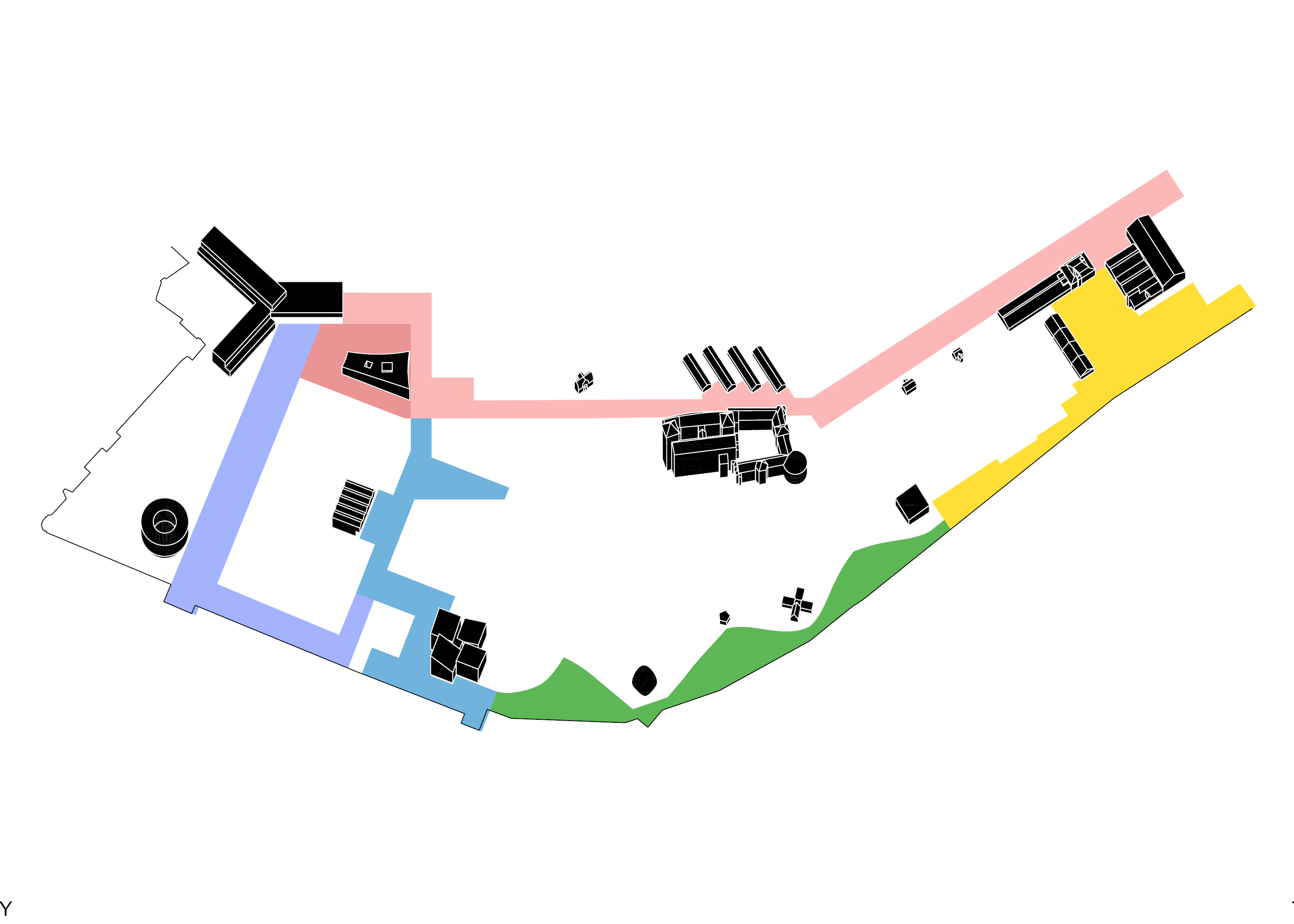

Public Loop

The three pieces are joined
together through a sequence of
diverse public spaces with the
most prominent anchor functions
attached, creating a loop of
vibrant experience throughout.

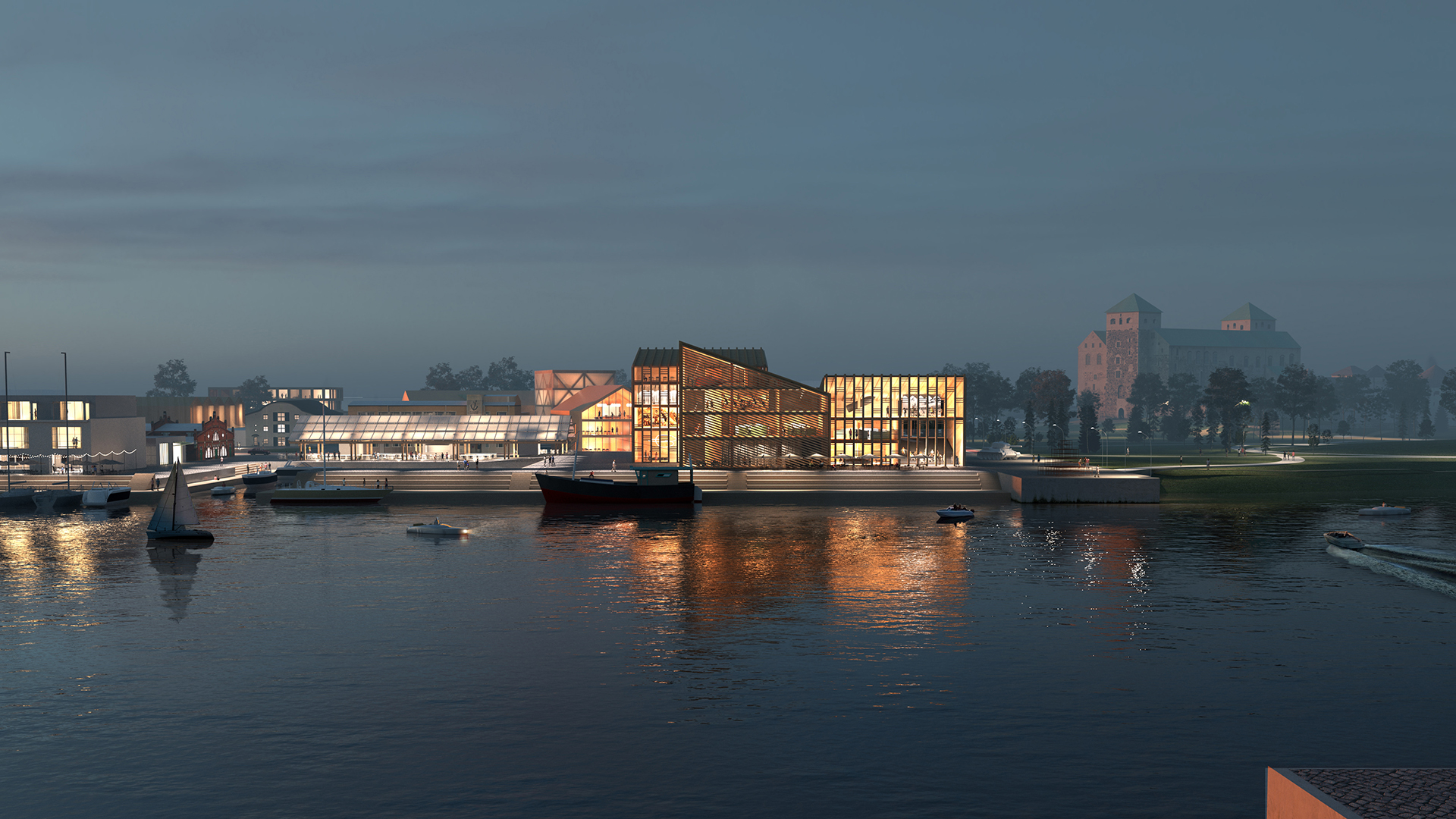

The most important public
programs of Forum Marinum,
Museum for History and the
Future and Turku Castle are
equally spread through the
masterplan and becomes the
central figures of each character
zone.













Since Turku is halfway situated
on water, the introduction of
water transportation hub
provides efficient water taxi,
water bus, ferry and private boat
connections to the islands of the
archipelago. With an operable

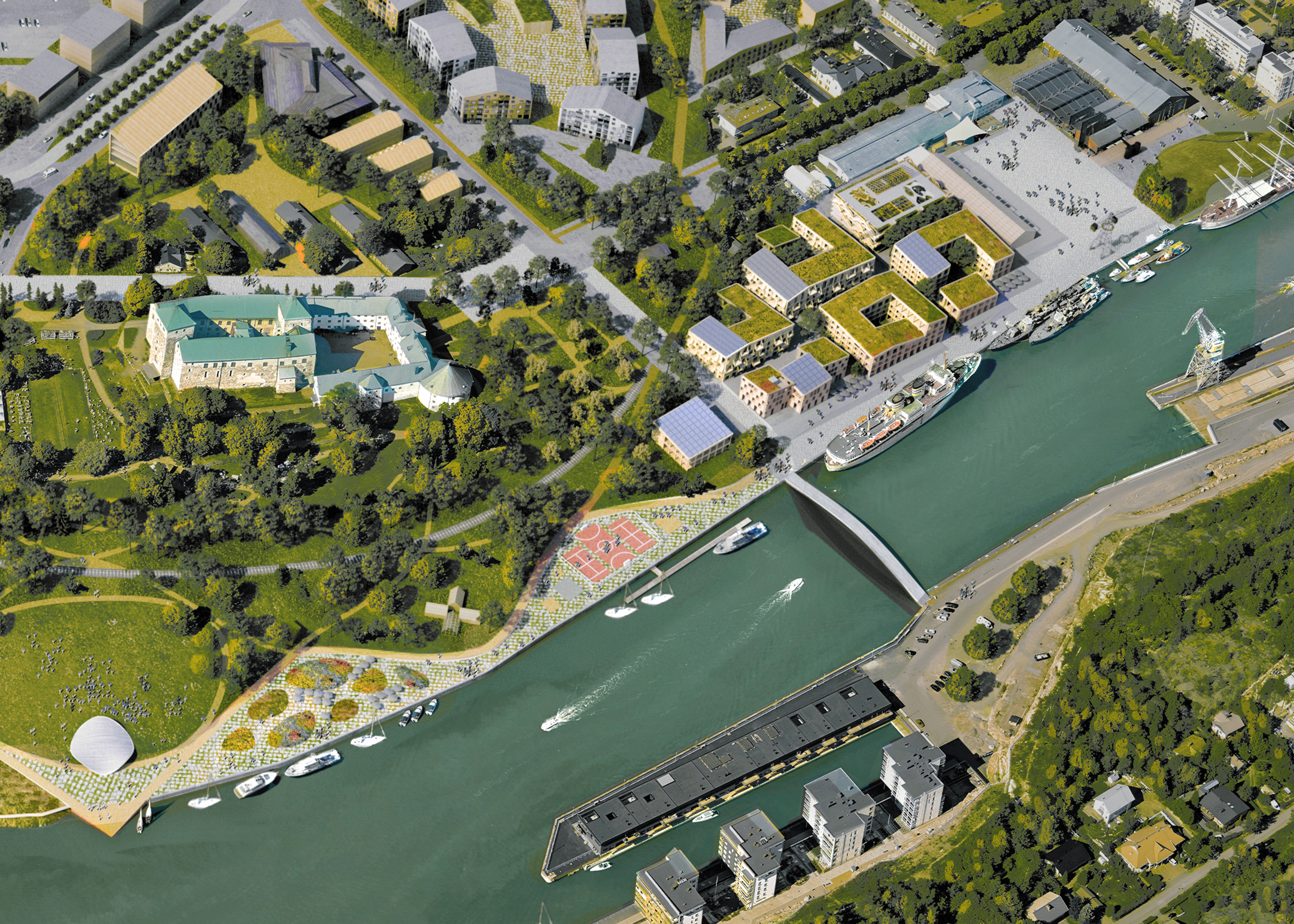

bridge joining the banks of Aura
river at its mouth, Linnanniemi
also becomes part of the scenic
bicycle route to archipelago.

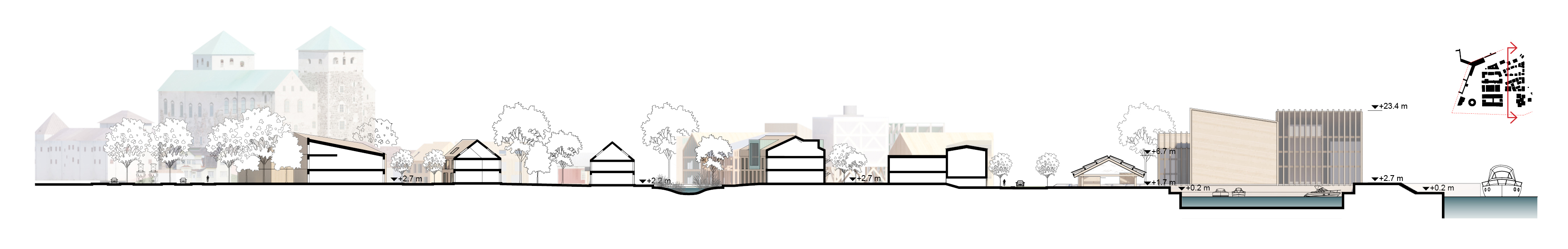

The flood risk for the low-lying
area of the masterplan is
tackled by creating a barrier
from the sea at the waterfront
edge by elevating the whole
ground floor level of the
buildings or introducing a raised
border. The intensified green
spaces and landscape pond
system of the park helps to
absorb excess rainwater. While
the central Harbour City water
axis acts as a continuous open
gutter and water storage system.

























Linnanniemi – a gateway of Turku, squeezed between the city and one of the most prolific archipelago‘s in the world marks the point where both conditions should meet. Situated mostly on a low-lying land that was once the sea, the area of natural setting to the medieval castle turned into a grey territory for industry and transportation. This transformation left the area not only as just a transfer point but also vulnerable to the future posed threats of climate change. Only by reintroducing nature as part of the story for Linnanniemi it can become the missing link between the city and the vast archipelago representing the versatile identity of Turku.

The site comprises three strong themes: historical background with the medieval Turku castle, the Aura riverfront of vibrant, growing city and a busy harbour welcoming many visitors throughout the year. These three themes shape the three distinct characteristic pieces interlocking together with the Castle Park at its heart.

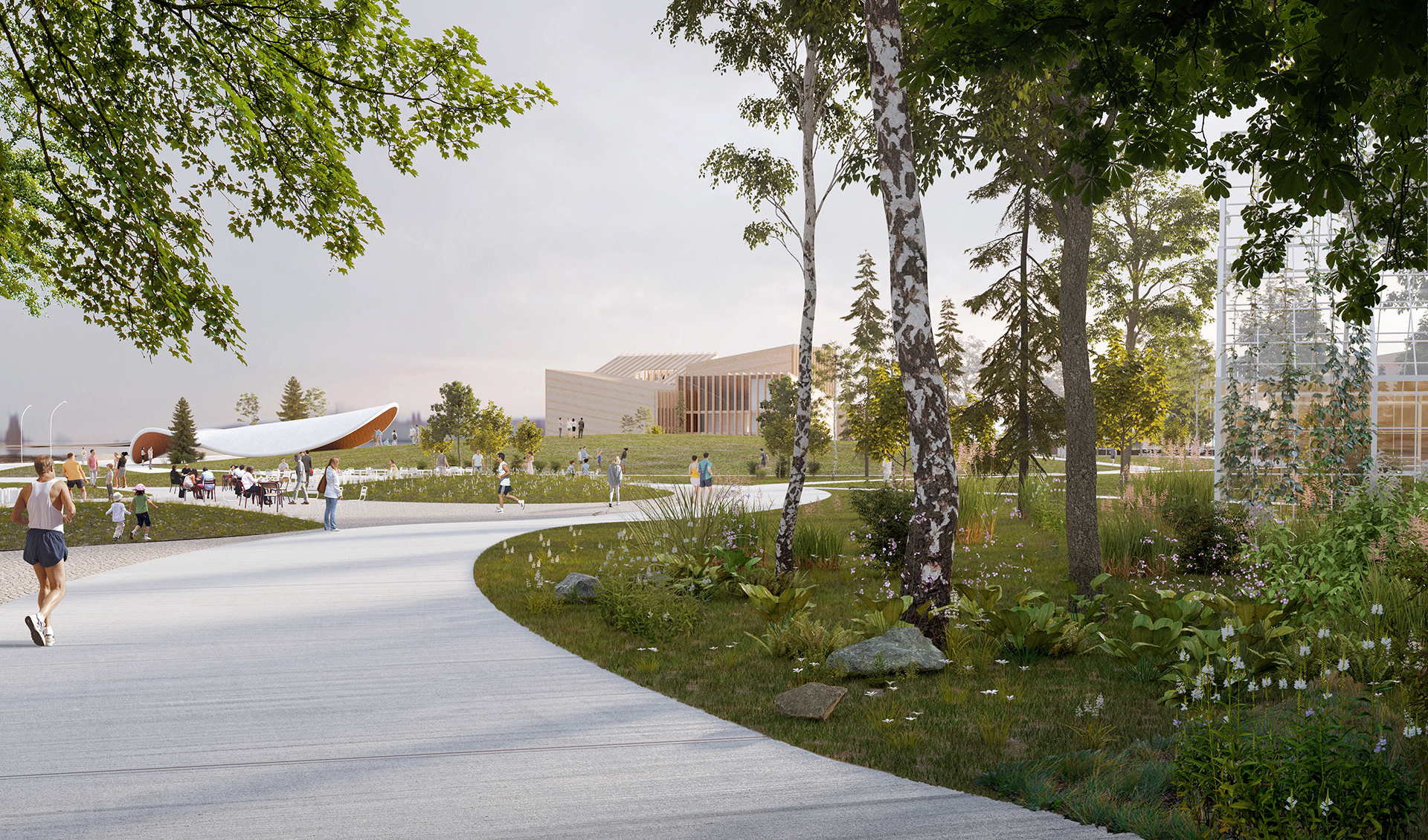

By surrounding existing castle park with a necklace of green public spaces, the park is stretched all the way to the waterfront becoming the backbone of nature, serving as a healthy recreational space to densely populated surrounding areas, a natural barrier from the intense industrial port to breath clean air into the city and a softscape preventing the area from flooding.

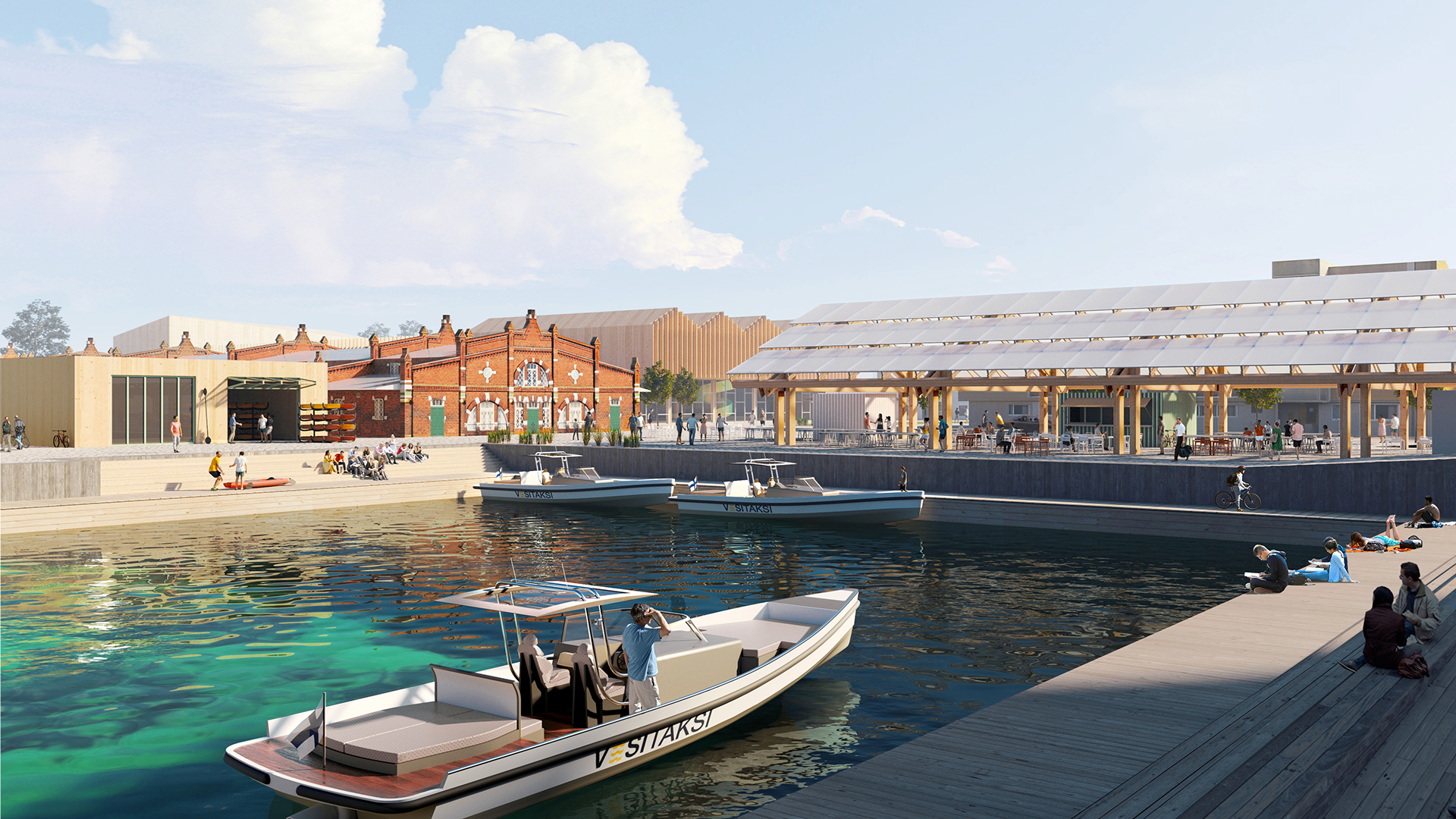

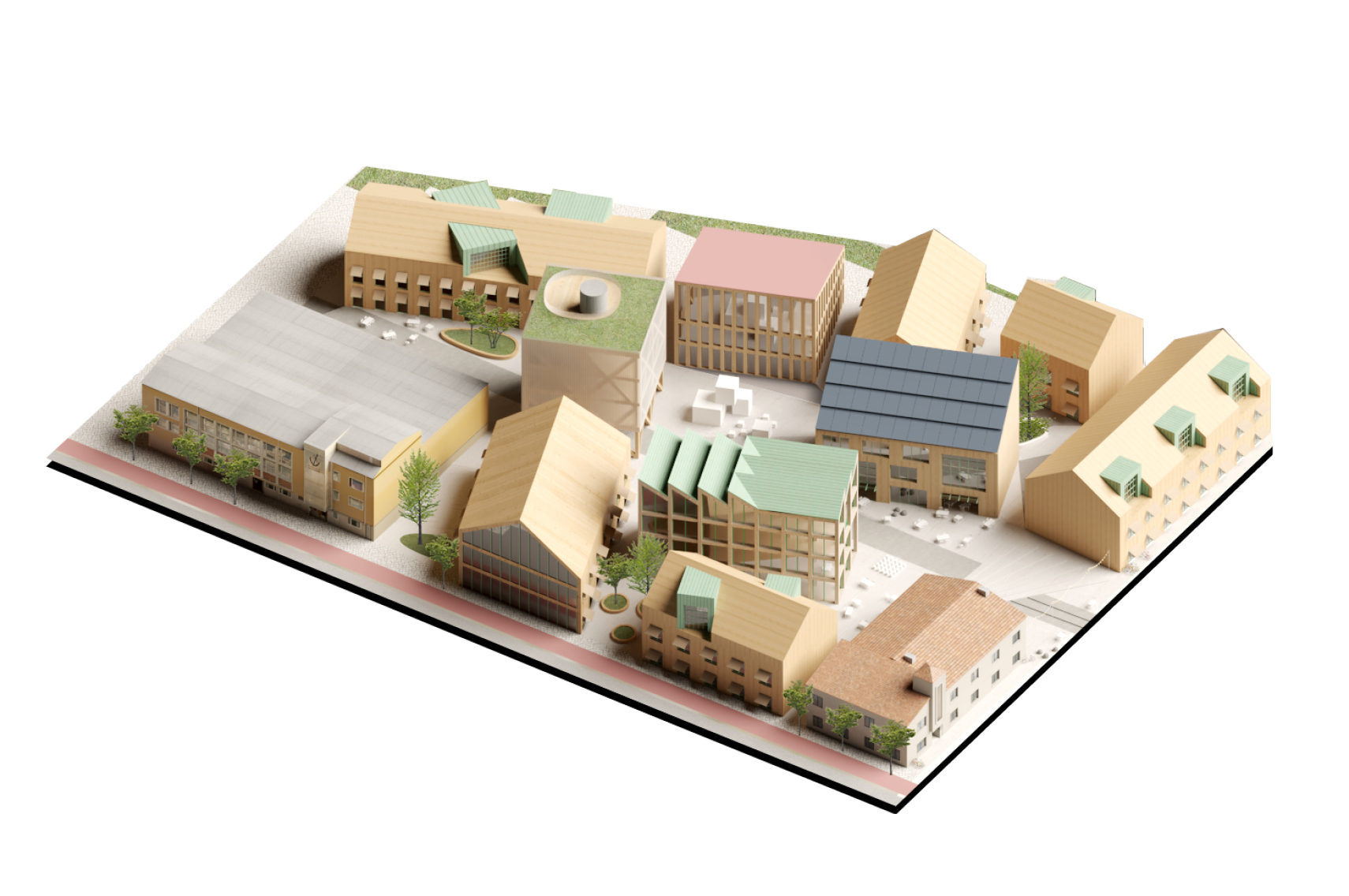

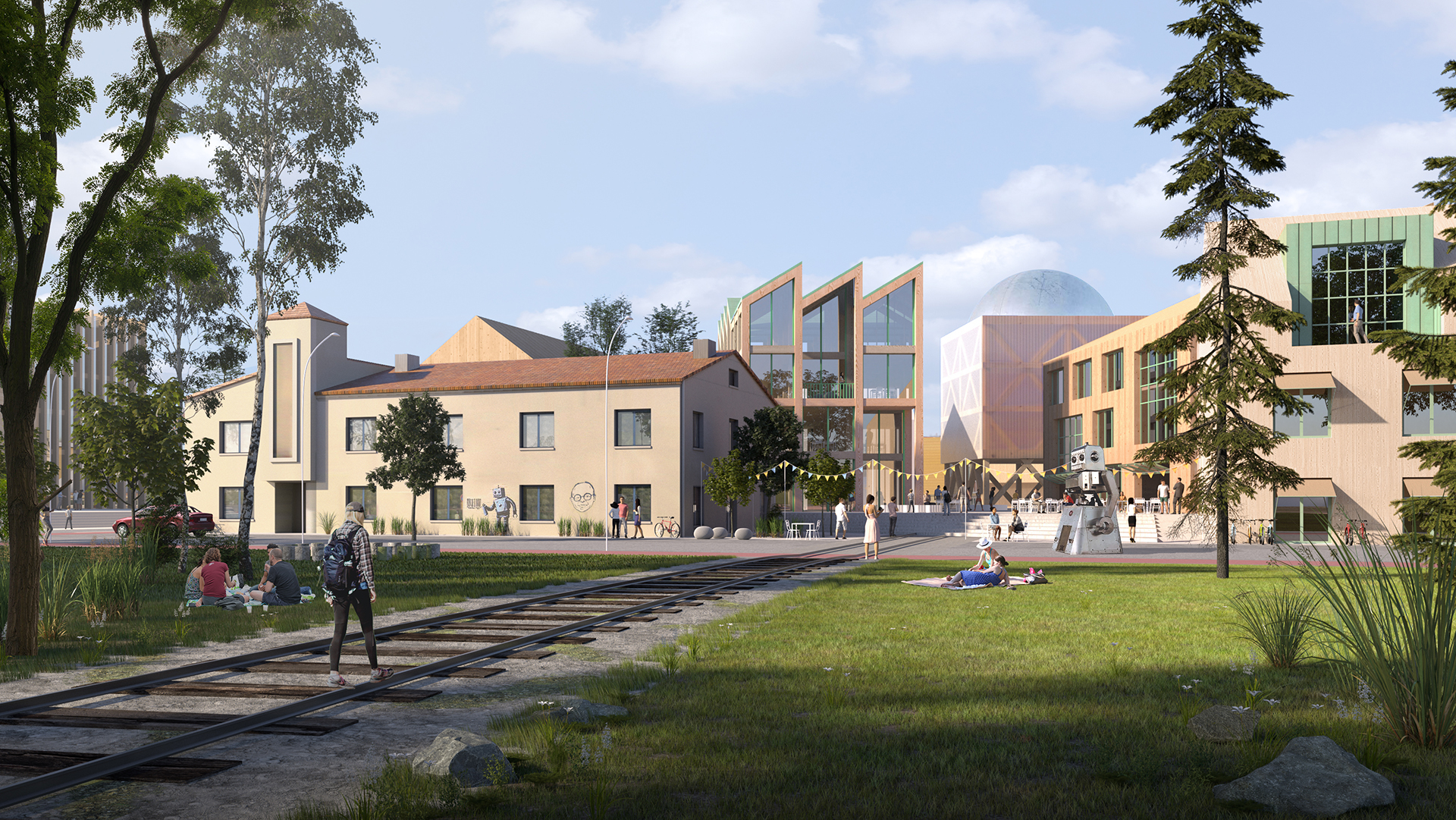

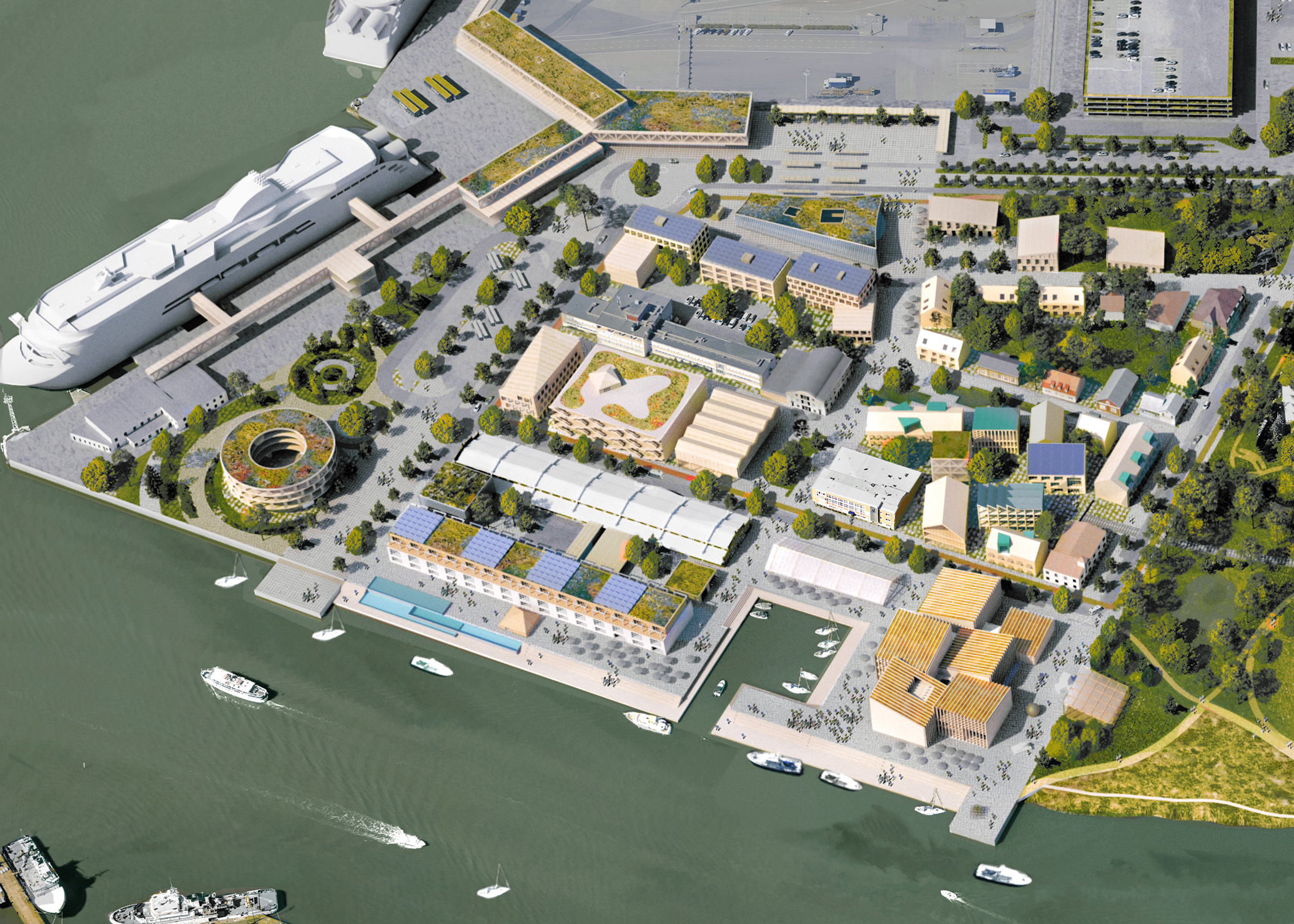

The Maritime Neighbourhood to the East mixes residential with service programs and Forum Marinum functions extending the vibrant riverfront to a shared zone for local community and city visitors. Lastly the Harbour City besides ensuring efficient and diversified city and archipelago connections also combines variety of services, turning the area from a transfer point into a destination with sustainability and innovation at its core.

The three pieces are joined together through a sequence of diverse public spaces with the most prominent anchor functions attached, creating a loop of vibrant experience throughout. The most important public programs of Forum Marinum, Museum for History and the Future and Turku Castle are equally spread through the masterplan and becomes the central figures of each character zone.

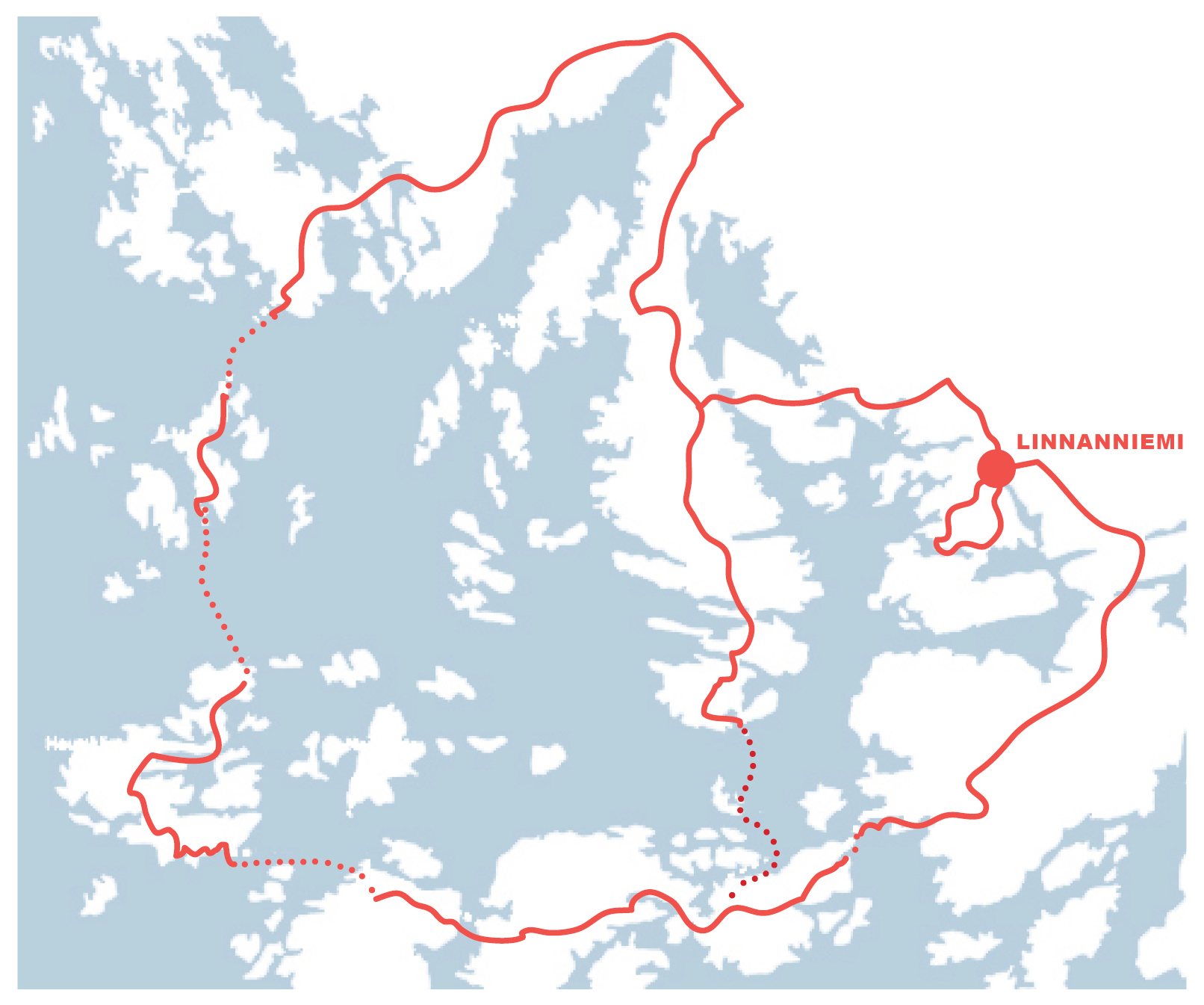

Since Turku is halfway situated on water, the introduction of water transportation hub together with an operable bridge joining the banks of Aura river at its mouth, ensures integration of Linnanniemi into the wider loops of Turku and its archipelago.

The flood risk for the low-lying area of the masterplan is tackled by creating a barrier from the sea at the waterfront edge by elevating the whole ground floor level of the buildings or introducing a raised border. The intensified green spaces and landscape pond system of the park helps to absorb excess rainwater, while the central Harbour City water axis acts as a continuous open gutter and water storage system.

All the existing buildings are maintained and reconstructed following the circular economy principals and all new construction is proposed to be made out of timber – the renewable material that is locally harvested in Finland. With all these measures, the area can meet the ambitious targets of Turku as carbon neutral city by 2029.
